Hebe-Schiebe Sliding System

Hebe-Schiebe Sliding System

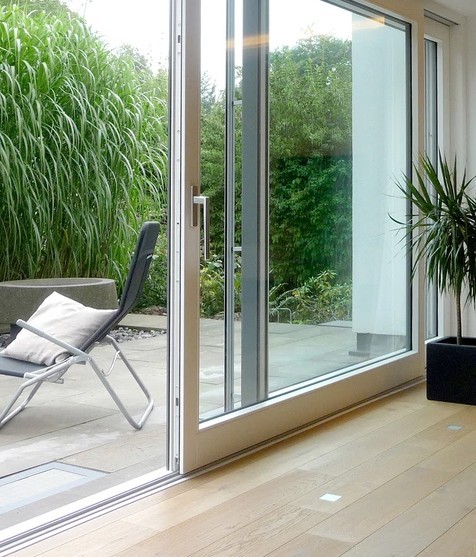

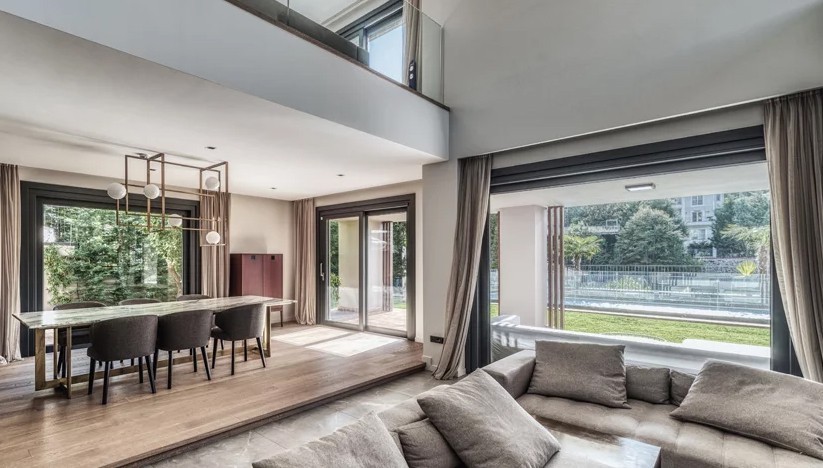

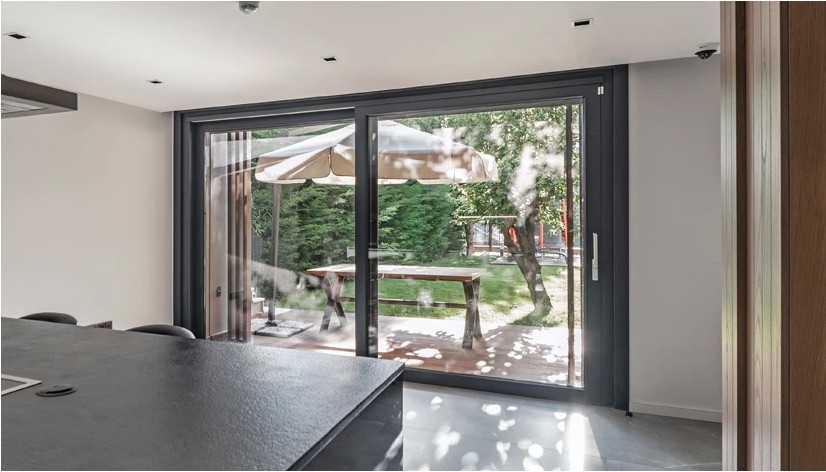

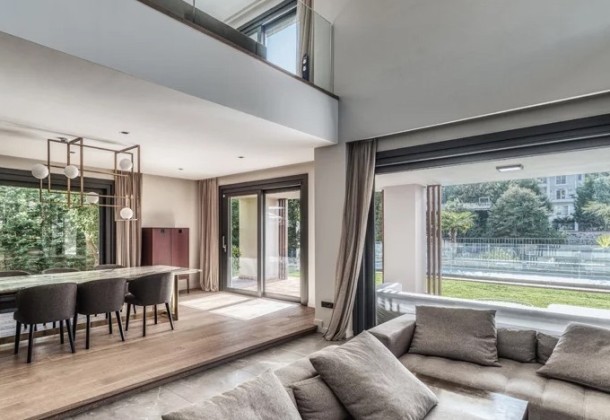

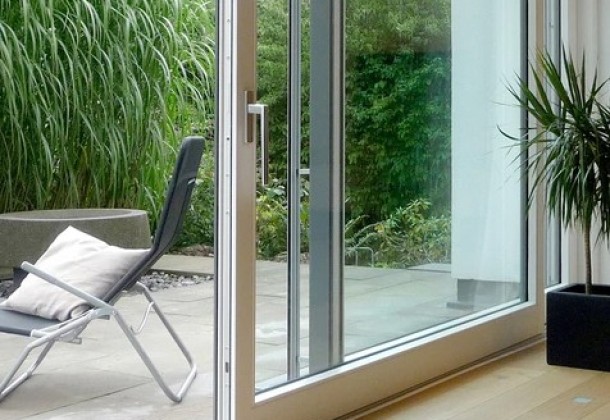

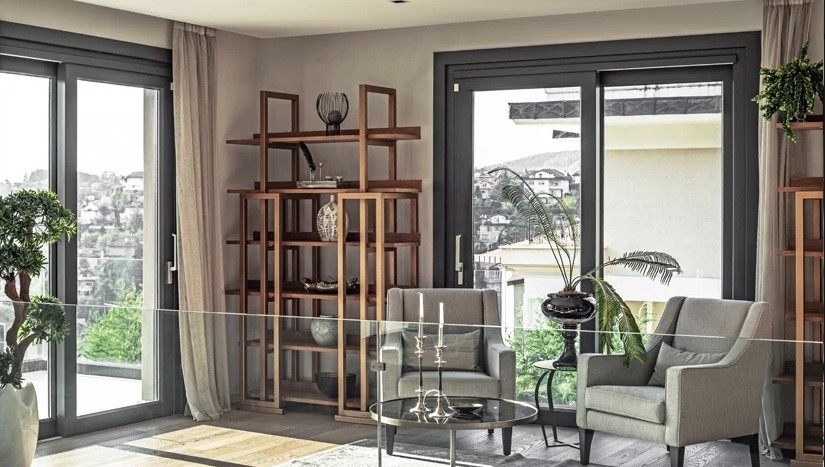

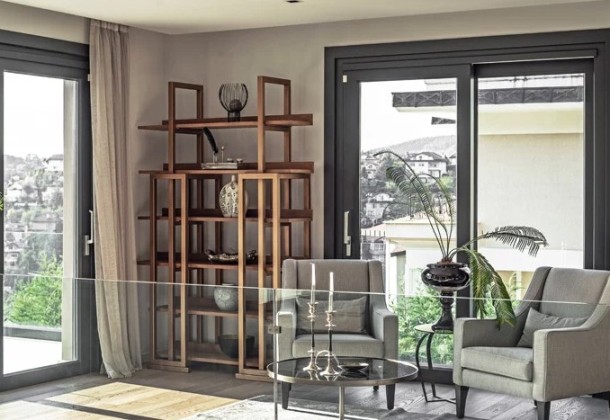

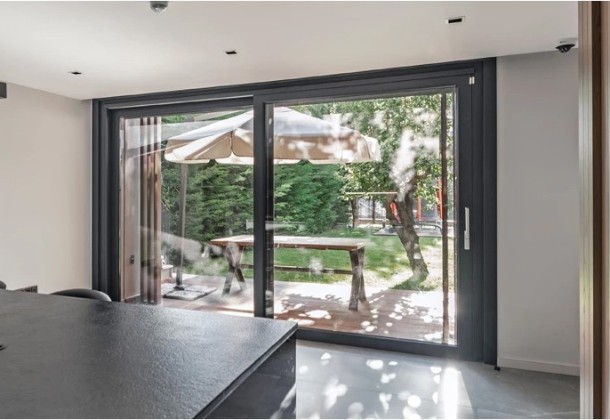

Thanks to the advantage of use in wide openings; It invites the view into your home in places such as balconies, terraces, patios, and conservatories.

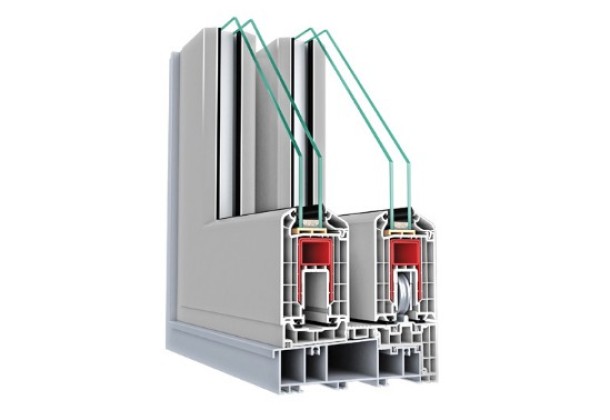

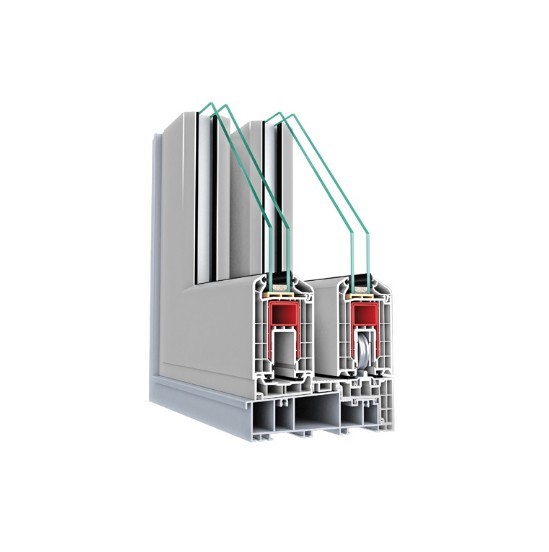

  • The frame profile is 170 mm wide and has 6-7 chambers.
  • The wing profile is 70 mm wide and has 5 chambers, it can be used with quality glasses with 20, 24, 28, 34, 40 mm intervals to provide maximum sound and heat insulation.
  • The wall thickness of the casing and wing profile is in Class A.
  • The thermal insulation of the aluminum threshold profile is provided by PVC threshold closure from the inside.
  • Since the screws used in the assembly of the frame profile can be hidden under the auxiliary profiles, no screws are visible from the outside.
  • For ease of transport and assembly, the frame profile is designed to be assembled in the field in a disassembled manner.
  • Thanks to the special twisted support sheet used in the wing profiles; It enables the system to be used in wide openings where the wind load and inertia resistance requirement is high.
  • The case provides an insulation advantage with the 2-seals used in the wing combination.



  • Profile Width: 170 mm, 156.5 mm and 160.5 mm
  • Number of Chambers: 5, 6, 7
  • Profile Class: Class A
  • Seal System: inner / outer seal system, hair roving applications
  • Gasket Type / Color: EPDM / Color: black or gray
  • Glass Thickness: 4, 14, 20, 24, 28, 29, 34, 40 mm
